By Craig Flaskerud, Storage Architect VDURA , Feb 9, 2026 (LinkedIn Blog Post) –

In today’s all-flash storage market, bold architectural claims are common: extreme efficiency, minimal overhead, and lower costs through aggressive hardware utilization. One of the more attention-grabbing positions in the industry is the idea that you can run a large-scale, shared storage system with as little as ~3% data protection overhead, sometimes combined with the use of previously deployed (used) SSDs, and still maintain enterprise-grade durability.

That combination may look compelling in a TCO spreadsheet. From a data durability engineering perspective, however, it deserves closer scrutiny.

This article examines whether such an approach increases the risk of data loss and why customers should ask deeper technical questions before accepting efficiency claims at face value.

The Appeal of Ultra-Low Protection Overhead

Let’s start with why this model is attractive. Reducing protection overhead to ~3% means:

• More usable capacity per rack
• Lower cost per effective terabyte
• Strong efficiency metrics in competitive benchmarks

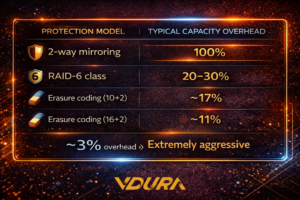

Compared to traditional protection schemes:

The trade-off is simple but significant: Every point of overhead you remove also removes fault tolerance margin. At 3%, there is very little room for anything to go wrong beyond just the baseline failure model.

The Narrow Margins of Ultra-Low Overhead: Where Reality Starts to Bite

While ultra-low overhead delivers impressive efficiency on paper, it assumes near-ideal conditions: perfectly uniform drive populations, independent failures, and flawless rebuilds under minimal stress. In practice, real-world deployments introduce variables that erode even small margins—particularly when combining aggressive protection schemes with non-homogeneous media. The flash shortage has accelerated one such variable: the incorporation of used or previously deployed SSDs as a cost-offsetting measure. These drives, while potentially viable in isolation, add significant statistical uncertainty that compounds the narrow fault-tolerance window of ~3% overhead designs

Adding Used SSDs Into the Equation

Building on those narrow margins, now layer in another design choice recently being positioned as safe and viable option to offset the flash shortage: incorporating used or previously written SSDsinto the storage pool.

While flash endurance is finite but manageable in well-controlled environments, previously deployed SSDs do introduce significant variability in:

• Remaining program/erase (P/E) cycles
• Latent media defects
• Read disturb susceptibility
• Controller wear history

Even with screening and telemetry, used SSD populations are statistically less uniformthan fresh media. Variability is the enemy of tightly engineered failure domains and ultimately operational reliability.

Individually, low overhead orused SSDs can be managed. Together, they create a compounding risk profile.

Where the Risk Actually Shows Up: Rebuilds

The real danger in any storage system is not steady-state operation. It’s the failure and rebuild window. With the limited fault-tolerance margin established by ultra-low overhead, and amplified by drive variability, this rebuild window becomes especially precarious.

When a drive fails:

• The system must read large volumes of data from surviving drives
• It must reconstruct missing fragments
• It must write rebuilt data back into the cluster

With only ~3% protection overhead:

• There are fewer redundant fragments available
• The system has less tolerance for secondary errors
• A second failure or an unrecoverable read error during rebuild can cross the line into permanent data loss

Now consider what rebuilds do to SSDs:

• Sustained high read pressure
• Elevated internal temperatures
• Controller and NAND stress
• Increased likelihood of encountering latent media defects

Used SSDs are more likely to surface errors under this exact stress profile. Some architectures claim to counter this with locally decodable erasure codes or wide stripes for faster, partial rebuilds (reducing exposure time). While innovative, these still involve high read stress on surviving (potentially reclaimed) drives across large clusters. In scenarios with correlated failures or batch deviations, even a shortened window can exceed such wafer-thin margins—especially when variability from used media surfaces latent issues

Uncorrectable Read Errors: The Silent Threat

Flash reliability specs often cite uncorrectable bit error rates (UBER) such as:

1 error per 10¹⁶–10¹⁷ bits read

That seems vanishingly small, until you do the math at scale. Rebuilding a few hundred terabytes requires reading quadrillions of bitsacross the cluster. Even if drives meet spec, the probability of hitting an unrecoverable read error during rebuild is not zero. With worn SSDs, that probability increases.

With only 3% protection overhead, the system may not have sufficient remaining redundancy to absorb that error. This is where ultra-efficient protection schemes move from “innovative” to statistically fragile.

The Compounding Risk Model

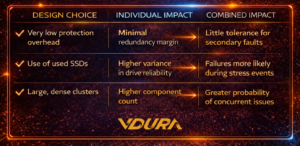

It’s important to understand that these risks are not additive—they are multiplicative, as the narrow margins of ultra-low overhead leave little buffer when variability from used SSDs or other real-world factors enters the equation:

Efficiency vs. Durability: An Engineering Trade-Off

There is nothing inherently wrong with optimizing for efficiency. But customers should be clear-eyed about what is being traded away.

To safely operate with ultra-low protection overhead under normal operating conditions, a system must also have assume near-ideal conditions (uniform drives, independent failures) validated under stress, not just steady-state:

• Extremely fast rebuild performance
• Continuous deep scrubbing to surface latent errors early
• Sophisticated predictive failure analytics
• Strict media qualification and retirement policies

Even then, the design is operating with narrower durability marginsthan more robustly protected systems.

The question is not whether such a system can work. The question is whether its risk envelope matches your data value.

Operational Reliability: Spec Sheets vs. Reality

SSD vendor datasheets routinely quote annualized failure rates (AFR) below 1%. On paper, a 3% data-protection overhead appears to provide comfortable headroom against those numbers. The problem is that AFR is a fleet-wide statistical average, measured across tens of millions of drives shipped globally.

Real systems don’t experience “the global average.” They experience specific populations of drives, often procured in tight time windows, from the same manufacturing runs, firmware versions, and supply chains. In these real-world deployments, industry data and operator experience show that failure behavior can deviate sharply from published AFRs. Bad batches, latent firmware defects, or environmental interactions can drive localized failure rates many multiples higher than the advertised average. Backblaze provides a good example of this https://www.backblaze.com/blog/backblaze-drive-stats-for-q3-2025/

When that happens, a thin 3% protection margin can be consumed far faster than anticipated. What looked sufficient on a spec sheet is suddenly overwhelmed in production, leaving little to no buffer for correlated failures or rebuild pressure. At that point, data loss is no longer a theoretical edge case—it becomes an operational outcome.

Spec-sheet AFRs describe probability at scale. Systems fail based on correlation in reality. Designing durability around the former while ignoring the latter is where architectures break.

When This Model May Be Acceptable

A low-overhead, mixed-media approach can be appropriate for certain workloads:

• Easily reproducible datasets
• Derived or cached data
• Workloads with strong application-layer replication
• Short-lived data with low durability requirements

It is far more difficult to justify for:

• Primary enterprise file data
• AI/ML training corpora that are costly to regenerate
• Long-retention research or compliance data
• Consolidated multi-tenant environments where blast radius matters

Bottom Line: Design for Failure, Not Hope

Operating with ~3%data-protection overhead, particularly when incorporating used or reclaimed SSDs, materially increases the risk of data loss under real-world conditions. Ultra-low-overhead protection schemes are typically justified by assumptions of sub-1% annualized failure rates and largely independent device failures. At scale, those assumptions are unreliable.

In real world production environments, failures are often correlated, not isolated. Drives sourced from the same manufacturing lots, sharing firmware, thermal conditions, and workload profiles, tend to age together. When failures occur, especially under rebuild stress, what begins as a single-device event can rapidly escalate into multi-device or multi-error scenarios that exceed the available protection margin in such minimal protection overhead approaches.

The use of previously deployed SSDs further tightens this margin. Uneven wear histories, latent defects, and uncertain remaining endurance all increase variance and undermine low-AFR assumptions. In stressed populations, effective failure rates can move well beyond the design envelope of ultra-thin protection schemes, leaving insufficient headroom to prevent data loss.

There is also an operational reality often absent from efficiency-driven narratives: used SSDs introduce additional requirements around secure erasure, requalification, data migration and compliance. These steps add complexity and risk that are rarely acknowledged alongside headline efficiency metrics.

For customers, the issue is not whether these architectures canfunction, but whether the associated risk envelope is being clearly acknowledged—and contractually backed. Organizations evaluating ultra-efficient storage platforms should insist on clear answers to a few fundamental questions:

• How does the system behave under correlated failures?
• What failure rates were assumed in the durability model, and are those assumptions supported by ORT and field results?
• What happens when those assumptions are exceeded?
• How does the system handle additional, compounding errors during rebuild?
• If used SSDs are part of the supply chain, how are they qualified and revalidated?
• Does the vendor provide an explicit data-durability guarantee (SLA) that covers the increased risk introduced by ultra-low protection overhead and reused devices? Marketing narratives often treat each factor independently. Physics and probability do not. Marketing narratives often treat each factor independently. Physics and probability do not.

Efficiency and density matter. But in storage architecture, durability margin is what protects reputations (and jobs). When data is lost, marketing metrics disappear instantly. Accountability does not—and it ultimately lands with the customer’s IT organization, not the vendor.
